Where is H07Z-U/R cable used?

H07Z-U/R cable is used in office buildings, shopping malls, hotels, schools, hospitals, tunnels, and other facilities with high occupant density. It is particularly preferred for projects where fire safety is essential.

What does Halogen Free mean?

The term Halogen Free means that the cable is manufactured using materials that do not contain halogens. This construction helps reduce smoke emission and the release of corrosive gases during a fire.

What is the difference between H07Z-U and H07Z-R?

H07Z-U features a solid (rigid) copper conductor, while H07Z-R has a stranded copper conductor for greater flexibility. Both cable types are halogen-free and designed for low smoke emission.

Which standards does H07Z-U/R cable comply with?

H07Z-U/R cable is manufactured in accordance with TS HD 21.15 S1 and BS 7211 standards. These standards define the product's safety and performance requirements.

What is the temperature rating of H07Z-U/R cable?

H07Z-U/R cable has a maximum continuous operating temperature of 70°C. Its halogen-free construction makes it suitable for installations where a high level of fire safety is required.

How can I request a quotation for H07Z-U/R cable?

Simply provide the required H07Z-U or H07Z-R cable size and quantity to receive a fast quotation. You can also request technical support for the most suitable halogen-free cable solution for your project.

AVRON CABLE

H07Z-U/R (HALOGEN FREE)
TECHNICAL INFORMATION

Name: H07Z-U/R (Halogen Free) Cable
Brand: Avron Cable

Type

(HALOGEN FREE) H07Z-U/R

Standards

TS HD 21.15 S1, BS 7211

Construction

1- Solid or stranded copper conductor
2- Special LSFOH thermoplastic insulation
3- XLPE-based HFFR compound

Applications

Used in office buildings, shopping malls, hotels, schools, tunnels, and other areas with high occupancy or increased fire safety requirements.

Technical Data

Max. operating temperature: 70°C

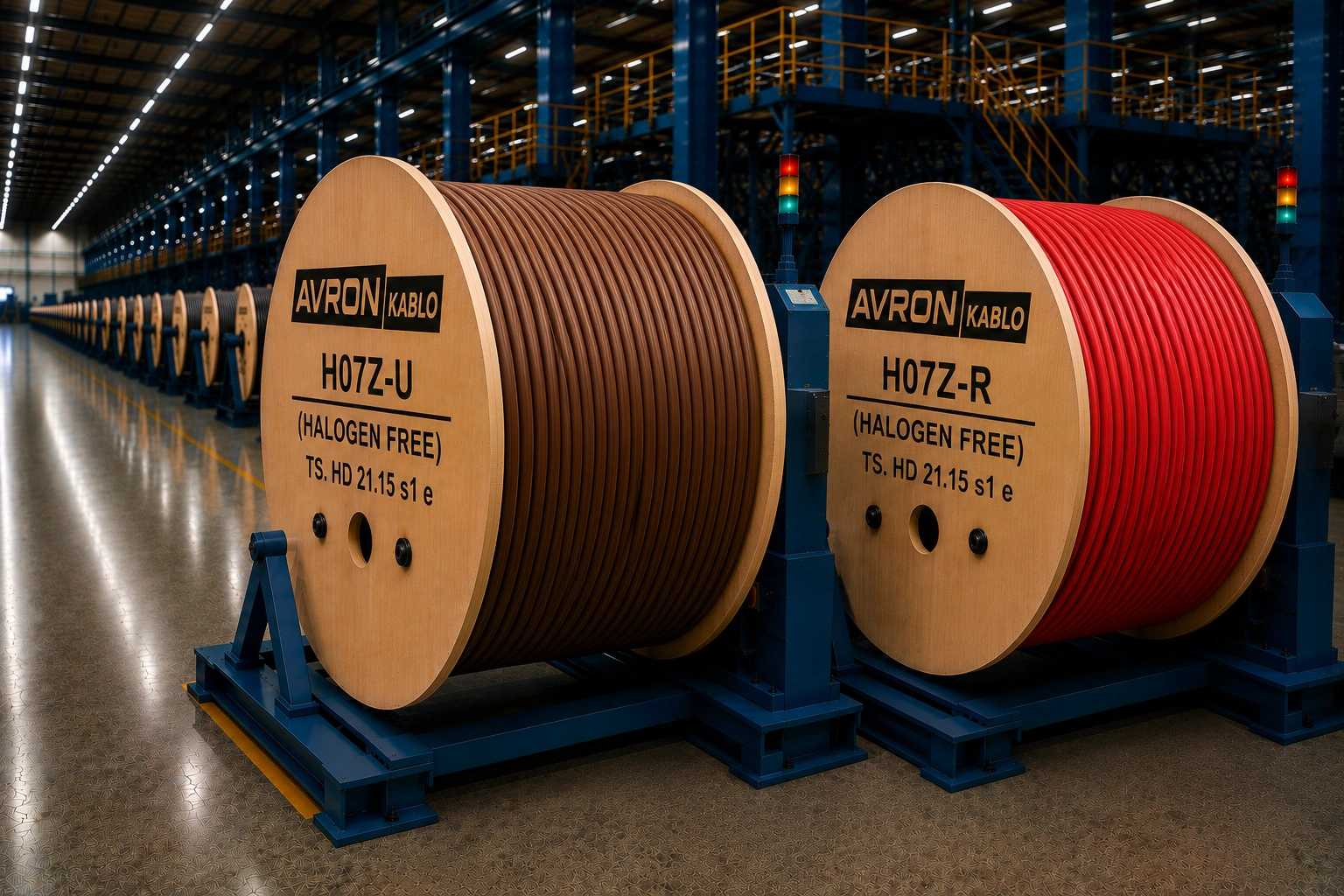

What Is H07Z-U/R (Halogen Free) Cable?

H07Z-U/R cable is a halogen-free installation cable featuring a solid or stranded copper conductor, special LSFOH thermoplastic insulation, and an XLPE-based HFFR construction. It is preferred for applications requiring a high level of fire safety thanks to its low smoke emission and minimal release of corrosive gases during a fire.

With its halogen-free construction, H07Z-U/R cable provides safe power transmission in buildings with high occupancy and is widely used in modern construction projects where fire safety is a priority.

Nominal Kesit No x mm²	İletken Tel Sayısı ve Çapı No x mm	Standart Et Kalınlığı (İzole) mm	Standart Et Kalınlığı (Kılıf) mm	Yaklaşık Dış Çap max. mm	20°C'de Maks. İletken DC Direnci Ω/km	Yaklaşık Toplam Ağırlık kg/km	30°C'de Maks. Akım Taşıma Kapasitesi Pipe A - Air A
Num. of Cores and Nominal Cross Section No x mm²	Number of Wires and Diameter No x mm	Thickness of Insulation mm	Thickness of Sheath mm	Approx. Overall Diameter max. mm	Conductor DC Resistance at 20°C Ω/km	Approx. Total Weight kg/km	Max. Current Carrying Capacity at 30°C Pipe A - Air A
Номинальное сечение No x мм²	Количество проволок и диаметр No x мм	Толщина изоляции мм	Толщина оболочки мм	Приблизительный наружный диаметр макс. мм	Сопротивление проводника при 20°C Ом/км	Приблизительный общий вес кг/км	Макс. токовая нагрузка при 30°C Pipe A - Air A
1 x 4	2,19	1,0	1,4	7,20	4,61	87	45 - 37
1 x 6	2,68	1,0	1,4	7,70	3,08	109	57 - 48
1 x 10	7 x 1,32	1,0	1,4	8,90	1,83	166	78 - 66
1 x 16	7 x 1,68	1,0	1,4	10,00	1,15	234	103 - 89
1 x 25	7 x 2,19	1,2	1,4	11,03	0,727	341	137 - 118
2 x 1,5	1,35	0,8	1,8	8,40	12,1	127	32 - 20
2 x 2,5	1,73	0,8	1,8	9,60	7,41	160	42 - 27
2 x 4	2,19	1,0	1,8	10,60	4,61	233	54 - 37
2 x 6	2,68	1,0	1,8	11,70	3,08	295	68 - 48
2 x 10	7 x 1,32	1,0	1,8	12,80	1,83	469	90 - 66
2 x 16	7 x 1,68	1,0	1,8	18,20	1,15	652	116 - 89
3 x 1,5	1,35	0,8	1,8	8,90	12,1	148	26 - 18
3 x 2,5	1,73	0,8	1,8	10,20	7,41	191	34 - 25
3 x 4	2,19	1,0	1,8	12,60	4,61	280	44 - 34
3 x 6	2,68	1,0	1,8	13,80	3,08	361	56 - 43
3 x 10	7 x 1,32	1,0	1,8	17,00	1,83	579	75 - 60
3 x 16	7 x 1,68	1,0	1,8	19,40	1,15	820	98 - 80
4 x 1,5	1,35	0,8	1,8	9,70	12,1	178	26 - 18
4 x 2,5	1,73	0,8	1,8	11,20	7,41	241	34 - 25
4 x 4	2,19	1,0	1,8	12,80	4,61	375	44 - 34
4 x 6	2,68	1,0	1,8	14,20	3,08	456	56 - 43
4 x 10	7 x 1,32	1,0	1,8	18,80	1,83	731	75 - 60
4 x 16	7 x 1,68	1,0	1,8	21,40	1,15	1036	98 - 80
5 x 1,5	1,35	0,8	1,8	11,60	12,1	218	26 - 18
5 x 2,5	1,73	0,8	1,8	12,70	7,41	285	34 - 25
5 x 4	2,19	1,0	1,8	13,80	4,61	375	44 - 34
5 x 6	2,68	1,0	1,8	16,60	3,08	548	56 - 43
5 x 10	7 x 1,32	1,0	1,8	20,60	1,83	891	75 - 60
5 x 16	7 x 1,66	1,0	1,8	23,40	1,15	1276	98 - 80

H07Z-U/R Cable Technical Specifications

Type: H07Z-U/R (Halogen Free)
Standard: TS HD 21.15 S1, BS 7211
Conductor: Solid or stranded copper conductor
Insulation: Special LSFOH thermoplastic insulation
Construction: XLPE-based HFFR compound
Maximum Operating Temperature: 70°C

Nominal Kesit No x mm²	İletken Tel Sayısı ve Çapı No x mm	Standart Et Kalınlığı (İzole) mm	Standart Et Kalınlığı (Kılıf) mm	Yaklaşık Dış Çap max. mm	20°C'de Maks. İletken DC Direnci Ω/km	Yaklaşık Toplam Ağırlık kg/km	30°C'de Maks. Akım Taşıma Kapasitesi Pipe A - Air A
Num. of Cores and Nominal Cross Section No x mm²	Number of Wires and Diameter No x mm	Thickness of Insulation mm	Thickness of Sheath mm	Approx. Overall Diameter max. mm	Conductor DC Resistance at 20°C Ω/km	Approx. Total Weight kg/km	Max. Current Carrying Capacity at 30°C Pipe A - Air A
Номинальное сечение No x мм²	Количество проволок и диаметр No x мм	Толщина изоляции мм	Толщина оболочки мм	Приблизительный наружный диаметр макс. мм	Сопротивление проводника при 20°C Ом/км	Приблизительный общий вес кг/км	Макс. токовая нагрузка при 30°C Pipe A - Air A
1 x 4	2,19	1,0	1,4	7,20	4,61	87	45 - 37
1 x 6	2,68	1,0	1,4	7,70	3,08	109	57 - 48
1 x 10	7 x 1,32	1,0	1,4	8,90	1,83	166	78 - 66
1 x 16	7 x 1,68	1,0	1,4	10,00	1,15	234	103 - 89
1 x 25	7 x 2,19	1,2	1,4	11,03	0,727	341	137 - 118
2 x 1,5	1,35	0,8	1,8	8,40	12,1	127	32 - 20
2 x 2,5	1,73	0,8	1,8	9,60	7,41	160	42 - 27
2 x 4	2,19	1,0	1,8	10,60	4,61	233	54 - 37
2 x 6	2,68	1,0	1,8	11,70	3,08	295	68 - 48
2 x 10	7 x 1,32	1,0	1,8	12,80	1,83	469	90 - 66
2 x 16	7 x 1,68	1,0	1,8	18,20	1,15	652	116 - 89
3 x 1,5	1,35	0,8	1,8	8,90	12,1	148	26 - 18
3 x 2,5	1,73	0,8	1,8	10,20	7,41	191	34 - 25
3 x 4	2,19	1,0	1,8	12,60	4,61	280	44 - 34
3 x 6	2,68	1,0	1,8	13,80	3,08	361	56 - 43
3 x 10	7 x 1,32	1,0	1,8	17,00	1,83	579	75 - 60
3 x 16	7 x 1,68	1,0	1,8	19,40	1,15	820	98 - 80
4 x 1,5	1,35	0,8	1,8	9,70	12,1	178	26 - 18
4 x 2,5	1,73	0,8	1,8	11,20	7,41	241	34 - 25
4 x 4	2,19	1,0	1,8	12,80	4,61	375	44 - 34
4 x 6	2,68	1,0	1,8	14,20	3,08	456	56 - 43
4 x 10	7 x 1,32	1,0	1,8	18,80	1,83	731	75 - 60
4 x 16	7 x 1,68	1,0	1,8	21,40	1,15	1036	98 - 80
5 x 1,5	1,35	0,8	1,8	11,60	12,1	218	26 - 18
5 x 2,5	1,73	0,8	1,8	12,70	7,41	285	34 - 25
5 x 4	2,19	1,0	1,8	13,80	4,61	375	44 - 34
5 x 6	2,68	1,0	1,8	16,60	3,08	548	56 - 43
5 x 10	7 x 1,32	1,0	1,8	20,60	1,83	891	75 - 60
5 x 16	7 x 1,66	1,0	1,8	23,40	1,15	1276	98 - 80

H07Z-U/R Cable Applications

H07Z-U/R cable is used in office buildings, shopping malls, hotels, schools, hospitals, tunnels, and other facilities where large numbers of people are present and fire safety is a priority.

Its halogen-free construction helps reduce the emission of dense smoke and toxic gases during a fire, improving the safety of people and property. For this reason, it is widely used in public buildings and projects with stringent fire safety requirements.

Nominal Kesit No x mm²	İletken Tel Sayısı ve Çapı No x mm	Standart Et Kalınlığı (İzole) mm	Standart Et Kalınlığı (Kılıf) mm	Yaklaşık Dış Çap max. mm	20°C'de Maks. İletken DC Direnci Ω/km	Yaklaşık Toplam Ağırlık kg/km	30°C'de Maks. Akım Taşıma Kapasitesi Pipe A - Air A
Num. of Cores and Nominal Cross Section No x mm²	Number of Wires and Diameter No x mm	Thickness of Insulation mm	Thickness of Sheath mm	Approx. Overall Diameter max. mm	Conductor DC Resistance at 20°C Ω/km	Approx. Total Weight kg/km	Max. Current Carrying Capacity at 30°C Pipe A - Air A
Номинальное сечение No x мм²	Количество проволок и диаметр No x мм	Толщина изоляции мм	Толщина оболочки мм	Приблизительный наружный диаметр макс. мм	Сопротивление проводника при 20°C Ом/км	Приблизительный общий вес кг/км	Макс. токовая нагрузка при 30°C Pipe A - Air A
1 x 4	2,19	1,0	1,4	7,20	4,61	87	45 - 37
1 x 6	2,68	1,0	1,4	7,70	3,08	109	57 - 48
1 x 10	7 x 1,32	1,0	1,4	8,90	1,83	166	78 - 66
1 x 16	7 x 1,68	1,0	1,4	10,00	1,15	234	103 - 89
1 x 25	7 x 2,19	1,2	1,4	11,03	0,727	341	137 - 118
2 x 1,5	1,35	0,8	1,8	8,40	12,1	127	32 - 20
2 x 2,5	1,73	0,8	1,8	9,60	7,41	160	42 - 27
2 x 4	2,19	1,0	1,8	10,60	4,61	233	54 - 37
2 x 6	2,68	1,0	1,8	11,70	3,08	295	68 - 48
2 x 10	7 x 1,32	1,0	1,8	12,80	1,83	469	90 - 66
2 x 16	7 x 1,68	1,0	1,8	18,20	1,15	652	116 - 89
3 x 1,5	1,35	0,8	1,8	8,90	12,1	148	26 - 18
3 x 2,5	1,73	0,8	1,8	10,20	7,41	191	34 - 25
3 x 4	2,19	1,0	1,8	12,60	4,61	280	44 - 34
3 x 6	2,68	1,0	1,8	13,80	3,08	361	56 - 43
3 x 10	7 x 1,32	1,0	1,8	17,00	1,83	579	75 - 60
3 x 16	7 x 1,68	1,0	1,8	19,40	1,15	820	98 - 80
4 x 1,5	1,35	0,8	1,8	9,70	12,1	178	26 - 18
4 x 2,5	1,73	0,8	1,8	11,20	7,41	241	34 - 25
4 x 4	2,19	1,0	1,8	12,80	4,61	375	44 - 34
4 x 6	2,68	1,0	1,8	14,20	3,08	456	56 - 43
4 x 10	7 x 1,32	1,0	1,8	18,80	1,83	731	75 - 60
4 x 16	7 x 1,68	1,0	1,8	21,40	1,15	1036	98 - 80
5 x 1,5	1,35	0,8	1,8	11,60	12,1	218	26 - 18
5 x 2,5	1,73	0,8	1,8	12,70	7,41	285	34 - 25
5 x 4	2,19	1,0	1,8	13,80	4,61	375	44 - 34
5 x 6	2,68	1,0	1,8	16,60	3,08	548	56 - 43
5 x 10	7 x 1,32	1,0	1,8	20,60	1,83	891	75 - 60
5 x 16	7 x 1,66	1,0	1,8	23,40	1,15	1276	98 - 80

Advantages of H07Z-U/R Cable

Its halogen-free construction ensures enhanced safety in critical applications.
Low smoke emission improves visibility and supports safer evacuation during a fire.
Minimizes the release of corrosive and toxic gases.
Suitable for use in buildings with high occupant density.
Manufactured in accordance with TS HD 21.15 S1 and BS 7211 standards.
Provides an ideal solution for projects requiring a high level of fire safety.

Nominal Kesit No x mm²	İletken Tel Sayısı ve Çapı No x mm	Standart Et Kalınlığı (İzole) mm	Standart Et Kalınlığı (Kılıf) mm	Yaklaşık Dış Çap max. mm	20°C'de Maks. İletken DC Direnci Ω/km	Yaklaşık Toplam Ağırlık kg/km	30°C'de Maks. Akım Taşıma Kapasitesi Pipe A - Air A
Num. of Cores and Nominal Cross Section No x mm²	Number of Wires and Diameter No x mm	Thickness of Insulation mm	Thickness of Sheath mm	Approx. Overall Diameter max. mm	Conductor DC Resistance at 20°C Ω/km	Approx. Total Weight kg/km	Max. Current Carrying Capacity at 30°C Pipe A - Air A
Номинальное сечение No x мм²	Количество проволок и диаметр No x мм	Толщина изоляции мм	Толщина оболочки мм	Приблизительный наружный диаметр макс. мм	Сопротивление проводника при 20°C Ом/км	Приблизительный общий вес кг/км	Макс. токовая нагрузка при 30°C Pipe A - Air A
1 x 4	2,19	1,0	1,4	7,20	4,61	87	45 - 37
1 x 6	2,68	1,0	1,4	7,70	3,08	109	57 - 48
1 x 10	7 x 1,32	1,0	1,4	8,90	1,83	166	78 - 66
1 x 16	7 x 1,68	1,0	1,4	10,00	1,15	234	103 - 89
1 x 25	7 x 2,19	1,2	1,4	11,03	0,727	341	137 - 118
2 x 1,5	1,35	0,8	1,8	8,40	12,1	127	32 - 20
2 x 2,5	1,73	0,8	1,8	9,60	7,41	160	42 - 27
2 x 4	2,19	1,0	1,8	10,60	4,61	233	54 - 37
2 x 6	2,68	1,0	1,8	11,70	3,08	295	68 - 48
2 x 10	7 x 1,32	1,0	1,8	12,80	1,83	469	90 - 66
2 x 16	7 x 1,68	1,0	1,8	18,20	1,15	652	116 - 89
3 x 1,5	1,35	0,8	1,8	8,90	12,1	148	26 - 18
3 x 2,5	1,73	0,8	1,8	10,20	7,41	191	34 - 25
3 x 4	2,19	1,0	1,8	12,60	4,61	280	44 - 34
3 x 6	2,68	1,0	1,8	13,80	3,08	361	56 - 43
3 x 10	7 x 1,32	1,0	1,8	17,00	1,83	579	75 - 60
3 x 16	7 x 1,68	1,0	1,8	19,40	1,15	820	98 - 80
4 x 1,5	1,35	0,8	1,8	9,70	12,1	178	26 - 18
4 x 2,5	1,73	0,8	1,8	11,20	7,41	241	34 - 25
4 x 4	2,19	1,0	1,8	12,80	4,61	375	44 - 34
4 x 6	2,68	1,0	1,8	14,20	3,08	456	56 - 43
4 x 10	7 x 1,32	1,0	1,8	18,80	1,83	731	75 - 60
4 x 16	7 x 1,68	1,0	1,8	21,40	1,15	1036	98 - 80
5 x 1,5	1,35	0,8	1,8	11,60	12,1	218	26 - 18
5 x 2,5	1,73	0,8	1,8	12,70	7,41	285	34 - 25
5 x 4	2,19	1,0	1,8	13,80	4,61	375	44 - 34
5 x 6	2,68	1,0	1,8	16,60	3,08	548	56 - 43
5 x 10	7 x 1,32	1,0	1,8	20,60	1,83	891	75 - 60
5 x 16	7 x 1,66	1,0	1,8	23,40	1,15	1276	98 - 80
